Tektronix TDS744A Digital Oscilloscope
4 Channels, 500 MHz, up to 2 GSa/s.
Options 13, 1M, 1F & 2F Installed
Auction Includes:

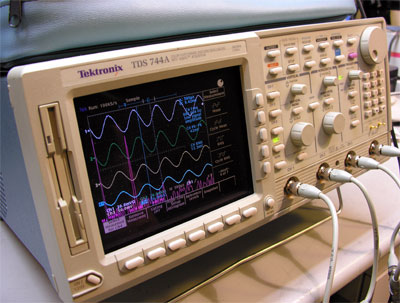

Tektronix TDS744A Oscilloscope

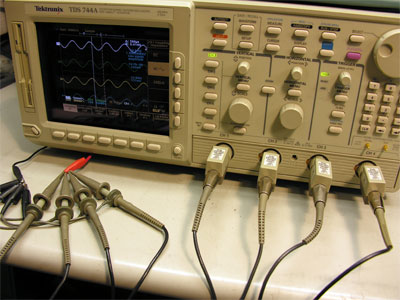

4 x Tektronix P6138A 10x Probes

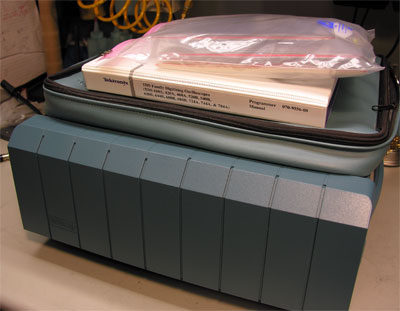

Front Cover & Accessory Pouch
All Documentation On CD
Equipment Notes:
The scope is in excellent physical and electrical condition.
It has all the bells and whistles on it. 2GS/s, 2 Gs/s, Advanced
Wave Form Math Functions such as:
Advanced FFT & Color graded persistence, etc..
The scope comes with 4 x P6138A 10x Probes. It
includes all documentation on CD. We will also include a hard
copy of the programming manual.
Installed Options:
13 - RS-232 & Centronics Hard Copy Interface (Parallel Port)
1F - 3.5mm Floppy Disk
2F - Extended Wave Form Math (FFT, Integration & Differentiation)
1M - Extended Memory Link (500k on one channel or 125k per channel evenly
distributed to all channels)
Data Sheet
Characteristics:
The TDS 744A digital oscilloscope provides
the advanced signal acquisition, analysis and display functions required
for making power electronics measurements.
Features:
InstaVuTM Acquisition (up to 400,000
wfms/sec)
500 MHz bandwidth
Sample rates to 2 GS/s
4 input channels
Pulse width, 1 ns glitch; runt, pattern, state, triggering
1 mV/div -10 V/div sensitivity
Infinite and variable persistence
Color Grading
Record lengths to 500,000 points
8-bit vertical resolution and up to 13 bits with HiRes
High resolution color monitor
3.5 inch DOS floppy disk drive (standard)
Vertical accuracy to 1%
Tek TriStarTM (DSP) processor
Slew Rate, Setup & Hold Violation, and Time-out triggers
Waveform pass/fail testing
Advanced signal processing functions
25 automatic measurements
Full GPIB programmability
Desktop publishing outputs
HDTV Video trigger option
Segmentable acquisition memory
VGA output
Signal Acquisition System
* Channels: 4
* Samplers: 4
* Bandwidth: 500 MHz
* Maximum Sample Rate
* 1 Channel: 2 GS/s
* 2 Channels: 1 GS/s
* 3, 4 Channels: 500 MS/s
Maximum Record Length - Standard
* 1 Channel: 50,000 pts
* 2 Channels: 50,000 pts
* 3, 4 Channels: 50,000 pts
Time Base System
* Time Bases: Main, Delayed
* Time/Division Range: 500 ps to 10 s/div
Vertical System
* Vertical Resolution: 8-bits (256 levels over 10.24 vertical divisions),
>13-bits with Hi-Res, 11-bits with averaging
* Analog Bandwidth Selections: 20 MHz, 100 MHz, and full
* Input Coupling: AC, DC, or GND
* Input Impedance Selections: 1 Mohm in parallel with 10 pF, or 50 ohm
(AC and DC coupling)
* Sensitivity: 1 mV to 10 V/div
Display: Monitor - 7 in. NuColor liquid crystal full-color shutter,
256 levels.
Measurement System
* Automatic Measurements: 25
* Cursors Measurements: Absolute, Delta; volts, time, frequency. NTSC
IRE units and line number with video trigger option
Waveform Processing
* Waveform Functions: Interpolation (sin(x)/x or linear), Average, Envelope,
Autosetup
* Advanced Waveform Functions: FFT, Integration, Differentiation, Waveform
(math or acquired) Limit Testing
* Arithmetic Operations: Add, Subtract, Multiply, Divide, Invert
Hardcopy/Desktop Publishing
* Hardcopy Ports: GPIB, RS-232, Centronics
* Hardcopy Formats: Epson, ThinkJet, DeskJet, LaserJet, PostScript,
TIFF, PCX, BMP, DPU 411/412, RLE, HPGL, Interleaf
* Floppy Drive: 3.5" 1.44 MB or 720 kB DOS compatible
Data Formats: MathCad and spreadsheet
Computer Interface
* GPIB (IEEE 488.2) - Full Programmability
* Auxiliary Inputs/Outputs - Video output (15-Pin VGA, full color);
External Trigger input; Main and Delay Trigger outputs; CH3 Signal output
Warranty:
This item is sold with
a 3 Day Satisfaction Guarantee. So bid with confidence.
As our many customers will attest, we will do our very best to resolve
any customer problems. But our official policy is:
This item comes with a 3 day right of return policy.
All returns must be made within 3 days of receipt.
All warranties are void if the calibration / warranty seals are broken.
Equipment must be shipped correctly and returned with all accessories.
Customer is responsible for all shipping charges on returns.
Foreign Buyers please be aware: We offer no warranty or returns on items
shipped outside the USA
Payment,
Shipping & Bidding:
Buyer will pay $75.00 packing and
shipping in the continental United States. Payments accepted are Paypal ,
cashiers checks and money orders only. No international buyers
unless Paypal verified. Please feel free to contact us if you
need other arrangements.
We will make every effort
to ship within 24 hours of receipt of payment. We ship with FedEx &
UPS only. We will be glad to ship with other carriers using the purchasers
shipping account. Please contact us to make any special shipping arrangements.
For shipping rate research, our shipping address is Boulder, CO USA
---- Zip Code is 80305.
